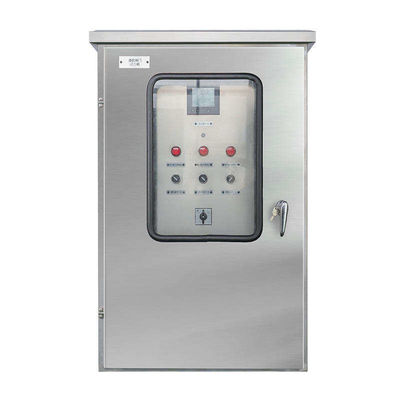

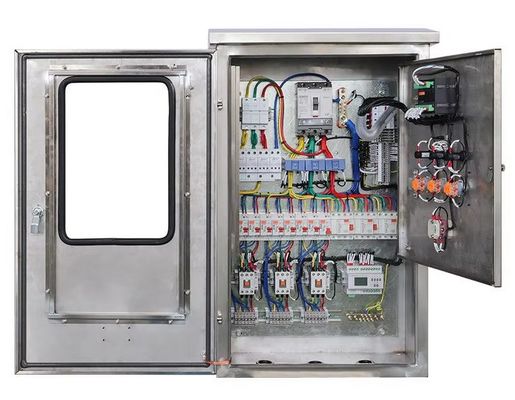

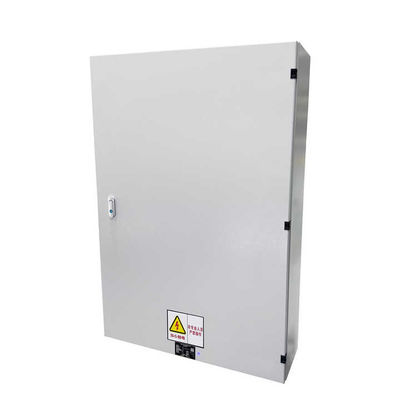

IP40 IP54 Low Voltage Electrical Control Panel 1KV Power Box Cabinet
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Customized |
| Certification | CCC, ISO |
| Minimum Order Quantity | 1 unit |
| Price | Pending |
| Packaging Details | Wooden Case |
| Delivery Time | 35 work days |
| Payment Terms | T/T,D/A |
| Supply Ability | 5000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | Color | Custom |
|---|---|---|---|
| Size | Custom | Feature | High Precision |
| Advantage | High Safety | Product Name | Low Voltage Distribution Cabinet |
| Highlight | 1kv power box cabinet,ip40 distribution box,ip40 power box cabinet |
||
Product Description
Low voltage electrical control panel power box
Product Description
Electrical data | Rated voltage: 220V/400V/660AC Rated insulation voltage: 1KV Rated impulse withstand voltage: 8KV Frequency: 50HZ Rated current: <=630A Rated withstand current:<30KA Rated peak withstand current:<63KA | |||
Structure | Protection level: IP40/IP54 Surface treatment:Externally powder-coated with RAL7035 textured paint Installment:wall mounted,floor stand Place:indoor,outdoor | |||
Material & Regulation | Enclosure:1.2mm,1.5mm sheet steel/stainless steel Door:1.5mm/2mm sheet steel/stainless steel Gland plate:1.5mm zinc-plated Size:Width(200-1200mm),Height(300x2200mm),Depth(150~400mm) | |||
Type | Explosion-proof type, Double doors are available | |||
Electrical Panel Board | ||
Cabinet | Height | 300~2200mm |
Depth | 150~400mm | |
Width | 200~1200mm | |
Material | Sheet steel,stainless steel | |
Door | Single/double | |
Bottom | Rubber ring, protective cable | |
Top | With lifting ring, easy to lift | |
*Explosion-proof,IP40/IP54 could be customized | ||
Components & Brand | HMI | MCGS,SIEMENS |
PLC | SIEMENS,DELTA | |
Circuit breaker | SCHNEIDER,CHNT | |
Relay | WEIDMULLER,IDEC,SCHENEIDER | |
Contactor KM | SCHNEIDER | |
Frequency converter | ABB,ZHCON | |
Terminal | WEIDMULLER | |
Cable | ZICHEN | |
Push button/Indication lamp | APT,SCHNEIDER,ect. | |
Advantage | • Professional technical team with around 10 years experience | |
• One-stop service from design to maintenance | ||
• Project management from biding to site acceptance test | ||
• Affordable price & Rapid response to issues | ||
• Remote commissioning & trouble shooting | ||
Warranty | One year warranty,life-long after-sales service | |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Waterproof Box, Thermostat & Heater, Industrial Plug & Socket, Metal Box, Distribution Box
3. why should you buy from us not from other suppliers?
Saip's expertise in design, production, and sales is unparalleled. With a commitment to high quality and sincere service, jinhuili has established itself as a successful cooperative partner for customers around the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,Arabic,French,Russian
