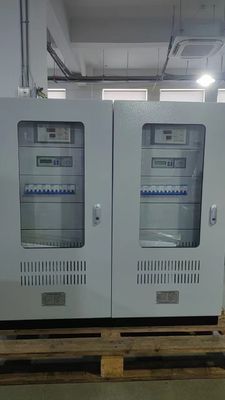

6KVA Medical Isolated Power Supply IEC60076 Custom Color Power Switch Cabinet

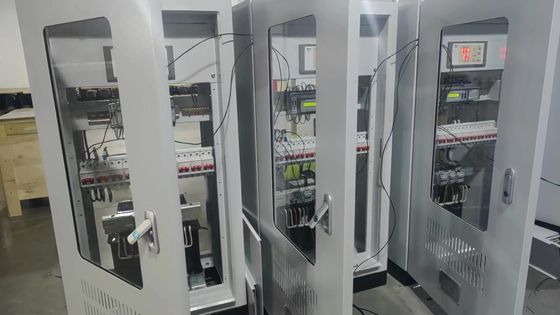

6KVA medical isolation IT system,  isolation power panel power switch cabinet

1. real time monitor and fault alarm of the ground insulation resistance,

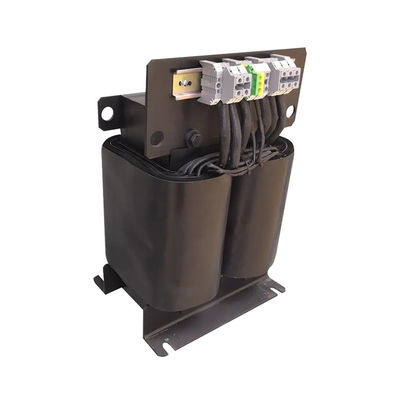

2. transformer load current and transformer winding temperature of the monitored IT system,
3. be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are
insulation faults,
4. real-time monitor the line disconnection fault, temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2S after the fault . occurs,
5. relay alarm output, LED alarm indication and other faults indication functions,
6. used for centralized alarm and display instrument, test signal generator, insulation fault locator and upper computer management software communications, and can monitor the operation status of IT system in real time.
7. Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.

Rated Power

• The system has a rated power of 6KVA, which is suitable for providing stable power to a variety of medical equipment within a certain range. This power capacity can support multiple low - to medium - power medical devices simultaneously, such as monitoring equipment, small - scale diagnostic instruments, and some types of therapeutic devices.

 Voltage Stability

• It is designed to maintain a high level of voltage stability. The output voltage is regulated precisely to ensure that the connected medical equipment receives a consistent power supply. Fluctuations in voltage can cause malfunctions or inaccurate readings in medical devices, so the system typically has a voltage regulation accuracy within a narrow range, for example, ± 1% - ± 3% of the rated voltage.

 Frequency Stability

• The frequency of the output power is also tightly controlled. In most regions, the standard power frequency is 50Hz or 60Hz, and the medical isolation IT system ensures that the output frequency remains stable within a tolerance of ± 0.5Hz. This is crucial for the proper operation of medical equipment that is sensitive to frequency variations.

Insulation Monitoring

• The system is equipped with an insulation monitoring device (IMD). The IMD continuously monitors the insulation resistance of the system. If the insulation resistance drops below a pre - set threshold (for example, 50kΩ), it indicates a potential insulation fault in the system. The IMD will then trigger an alarm to alert medical staff or maintenance personnel to take appropriate measures.

Fault Alarm

• In addition to insulation faults, the system can detect other types of faults, such as over - current, over - voltage, and under - voltage. When a fault is detected, the power switch cabinet will activate an alarm, which can be in the form of a visual indicator (such as an LED light) or an audible signal. Some advanced systems can also send alarm messages to a remote monitoring center via communication interfaces.

Real - Time Monitoring

• The isolation power panel often has a display that shows real - time information about the system's operation, such as output voltage, current, insulation resistance, and fault status. This allows medical staff to monitor the system's performance at any time and take timely action in case of any abnormalities.
