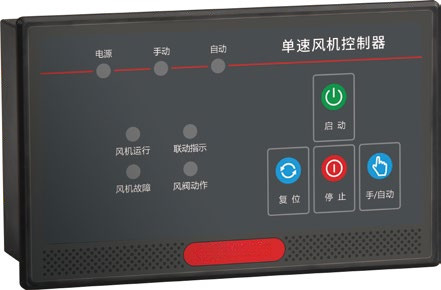

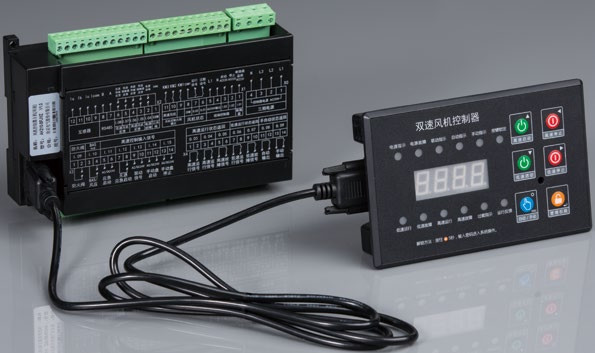

999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller

  • 999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller
  • 999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller
  • 999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller
  • 999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller
Place of Origin Chengdu, China
Brand Name Customized
Certification CCCF, ISO
Model Number 0.55-75KW
Minimum Order Quantity 1 unit
Price Pending
Packaging Details Wooden Case
Delivery Time 35 work days
Payment Terms T/T,D/A
Supply Ability 1000PCS/YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Long Service Life One-key Reset Of Faults One-key Reset Of Faults
Standard ISO / CE / CCC Working Voltage Customized
Signal Feedback Hand Automatic Feedback Power Failure Resume Option Non-volatile Memory
Surface Treatment Customization Color Custom
Size Custom Feature High Precision
Advantage High Safety Product Name Automatic Control Panels
Highlight

999A Fan controller Automatic Control Panels

,

Automatic Control Panels Customization

,

0.75kW Motor Intelligent controller
Leave a Message
Product Description



Fan control Motor controller Intelligent controller



Key attributes



Power supply: AC220V 50/60Hz


Rated power: 0.75kW ~ 45kW(with HGQ/F-100A signal collector)  46kW ~ 75kW(with HGQ-200 signal collector)

Rated current: 1.0 ~ 999A

Display accuracy: 0.1A

Working mode: Control a single speed

Protection function: built-in power supply overvoltage, undervoltage, phase break, phase error detection; Contactor failure,

  Motor blocking, overload, underload, three-phase unbalance protection

Fault indication: audible and visual alarm

Load type: fan

Load starting mode: direct starting, star triangle starting

Electric shock capacity: 250VAC 5A/10A(resistive)

Main machine dimensions: 179×116×48mm

Display dimensions: 153×98×32mm

Display hole size: 145×90mm

Installation mode: panel type

Operating temperature: -10℃ ~ 45℃

Ambient humidity: 10 ~ 90%RH(non-condensing)

Current acquisition: standard transformer



product feature



◇ Heat relay protection and signal collector protection can be switched


◇ The number of signal collectors can be configured

◇ Support field operation box power supply, operation and instruction

◇ Host DN35 guide rail installation

◇ Support RS485 communication function (need to select communication model)

◇ Support port customization

◇ Support local start signal only start without alarm


◇ Support protection function can be configured





999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller 0

999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller 1

999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller 2999A Fan Controller Automatic Control Panels Customization Motor Intelligent Controller 3







Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.

The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
