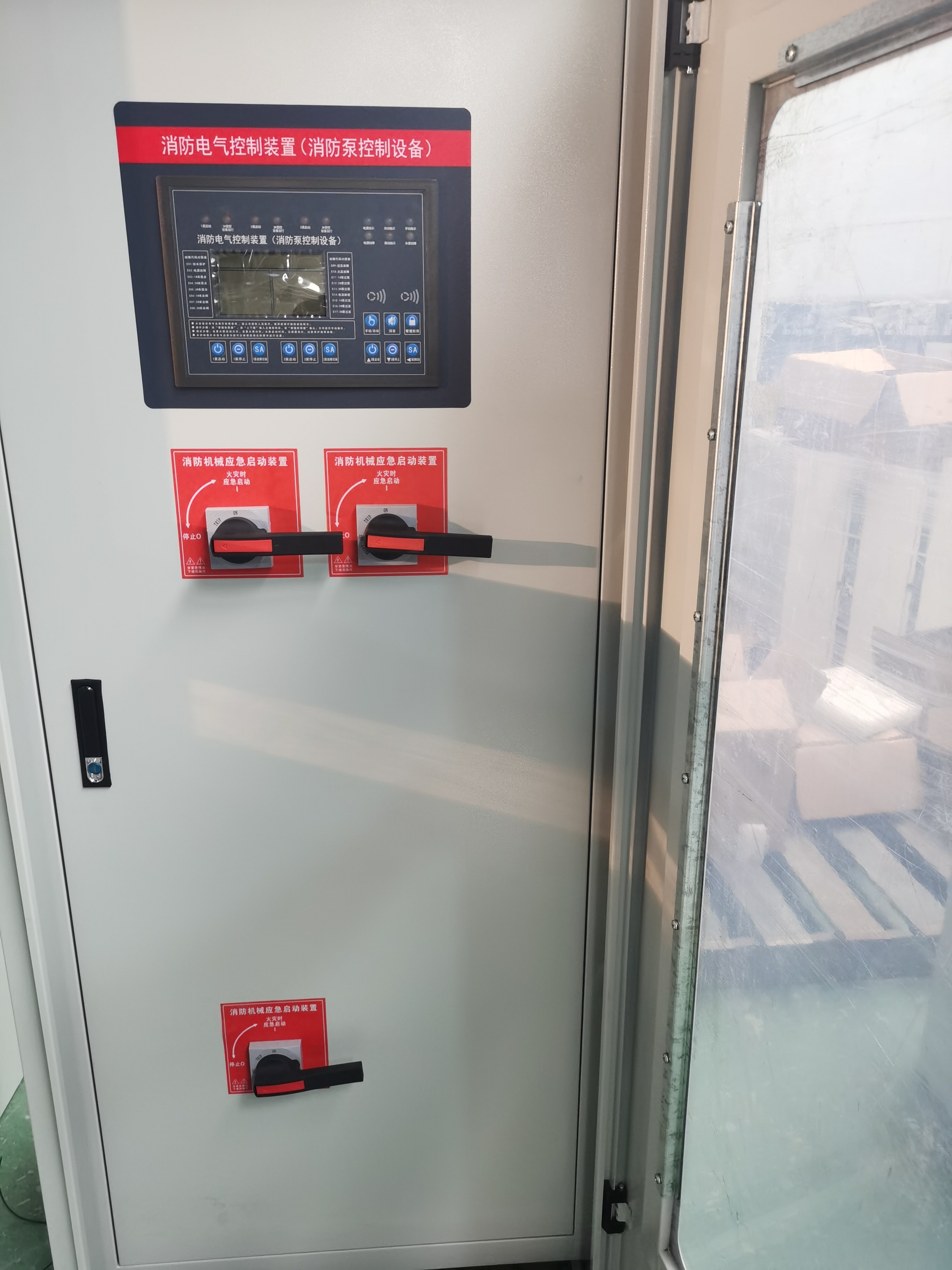

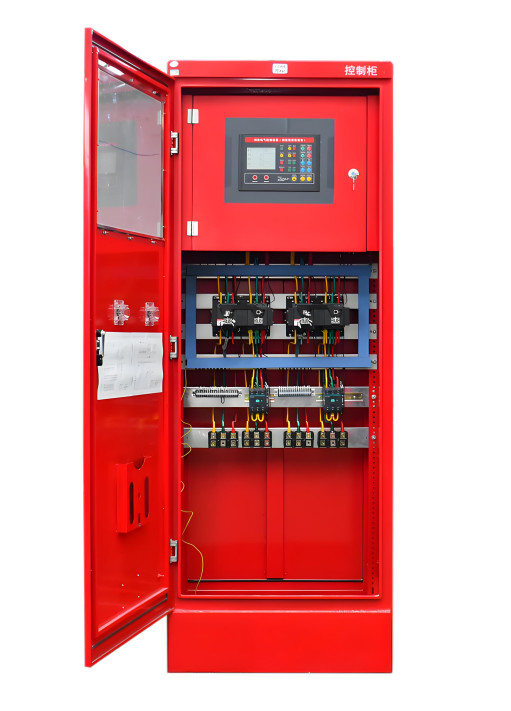

Three-phase 380V 75KW one use one standby pump starting cabinet motor star triangle start

Key attributes

Power supply: AC220V 50/60Hz

Rated power: 75kW
Control mode: direct starting, star triangle starting, soft starting, autobuck starting
Working mode: one use one standby
Protection function: power supply overvoltage, undervoltage, phase break, wrong phase, motor phase break, blocked rotation, overload, underload three-phase imbalance,
Circuit breaker failure, contactor failure, fire pool water shortage
Fault indication: Chinese display, sound and light alarm
Load type: water pump
Contact capacity: 250VAC 5A/10A (resistance)
Operating temperature: -10℃ ~ 45℃
Ambient humidity: 10 ~ 90%RH (non-condensing)

Three-phase 380V standby pump with 75KW power. The starting cabinet is used to control the motor in a star-triangle (Y-△) starting mode. Star delta start is a common step-down start method, suitable for normal run time for the triangular connection of three-phase asynchronous motor stator winding, can effectively reduce the starting current, reduce the impact on the grid. Power: 200 kw, the power can meet the demand of pump under actual conditions of operation, to provide enough power for conveying fluid. Voltage: 380 v three-phase, this is common in industrial power supply voltage, accord with the standard of power supply of the most of the factories and industrial sites. Winding connection: normal runtime USES triangle connection, so that when it starts by star delta conversion step-down start.

product feature
