300KVA UPS Uninterruptible Power Supply Three Phase 30KVA 30KW
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Customized |
| Certification | CCC, ISO |
| Model Number | JHL/UPS3S-300KVA |
| Minimum Order Quantity | 1 unit |
| Price | Pending |
| Packaging Details | Wooden Case |
| Delivery Time | 35 work days |
| Payment Terms | T/T,D/A |
| Supply Ability | 5000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | Color | Custom |
|---|---|---|---|
| Size | Custom | Feature | High Precision |
| Advantage | High Safety | Product | UPS Uninterrupted Power |
| Highlight | ups uninterruptible power supply,uninterruptible power supply three phase,300kva ups power supply |
||
Product Description

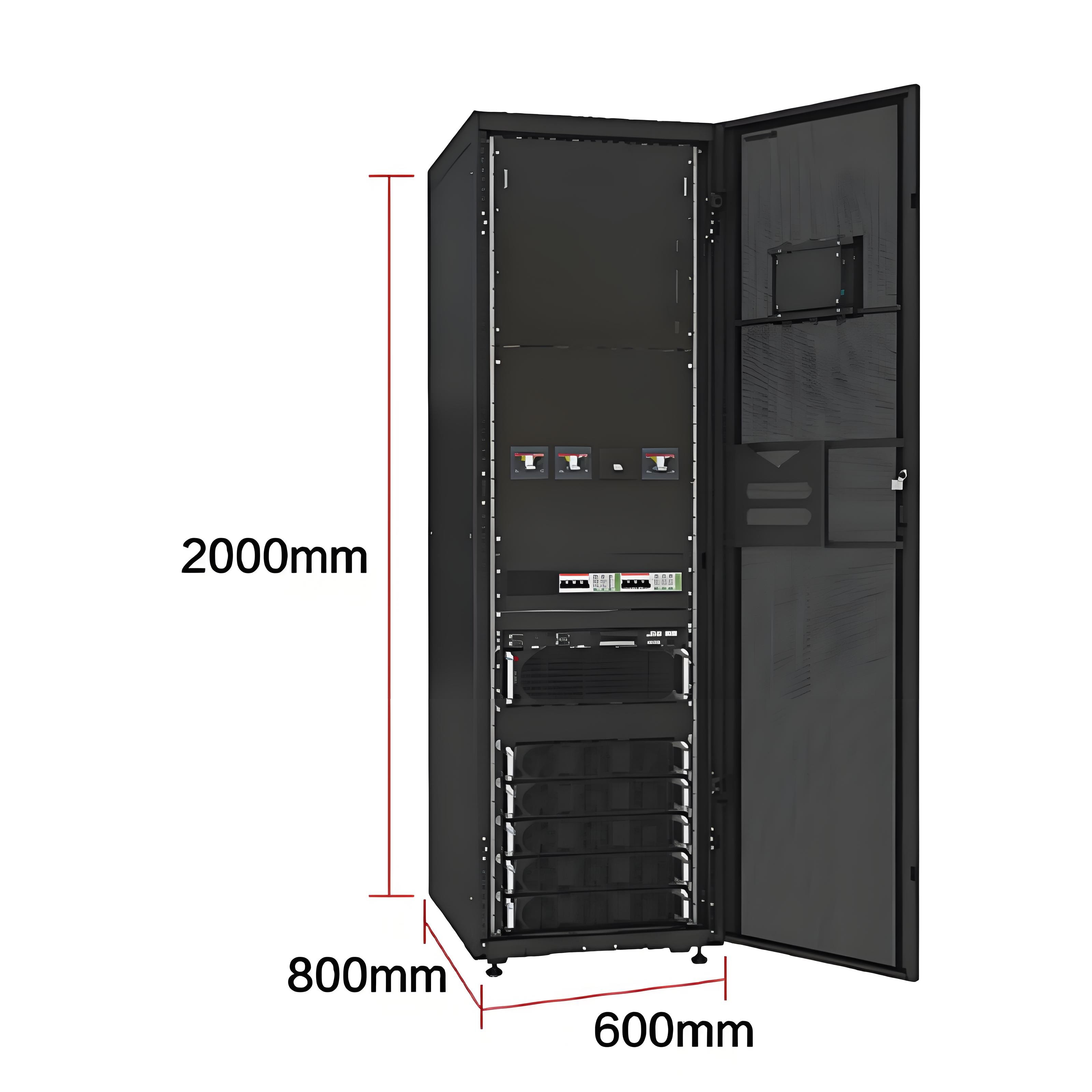

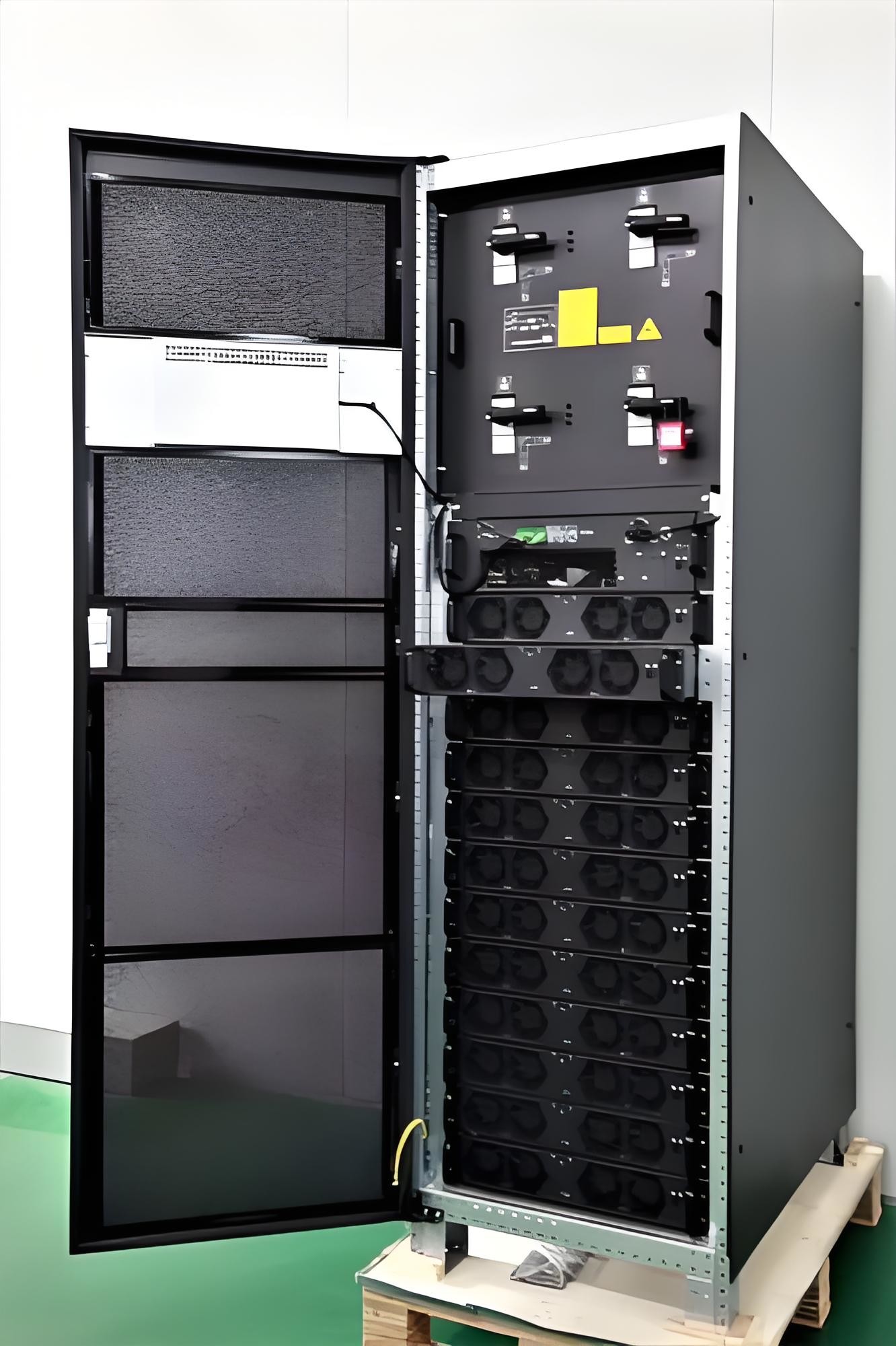

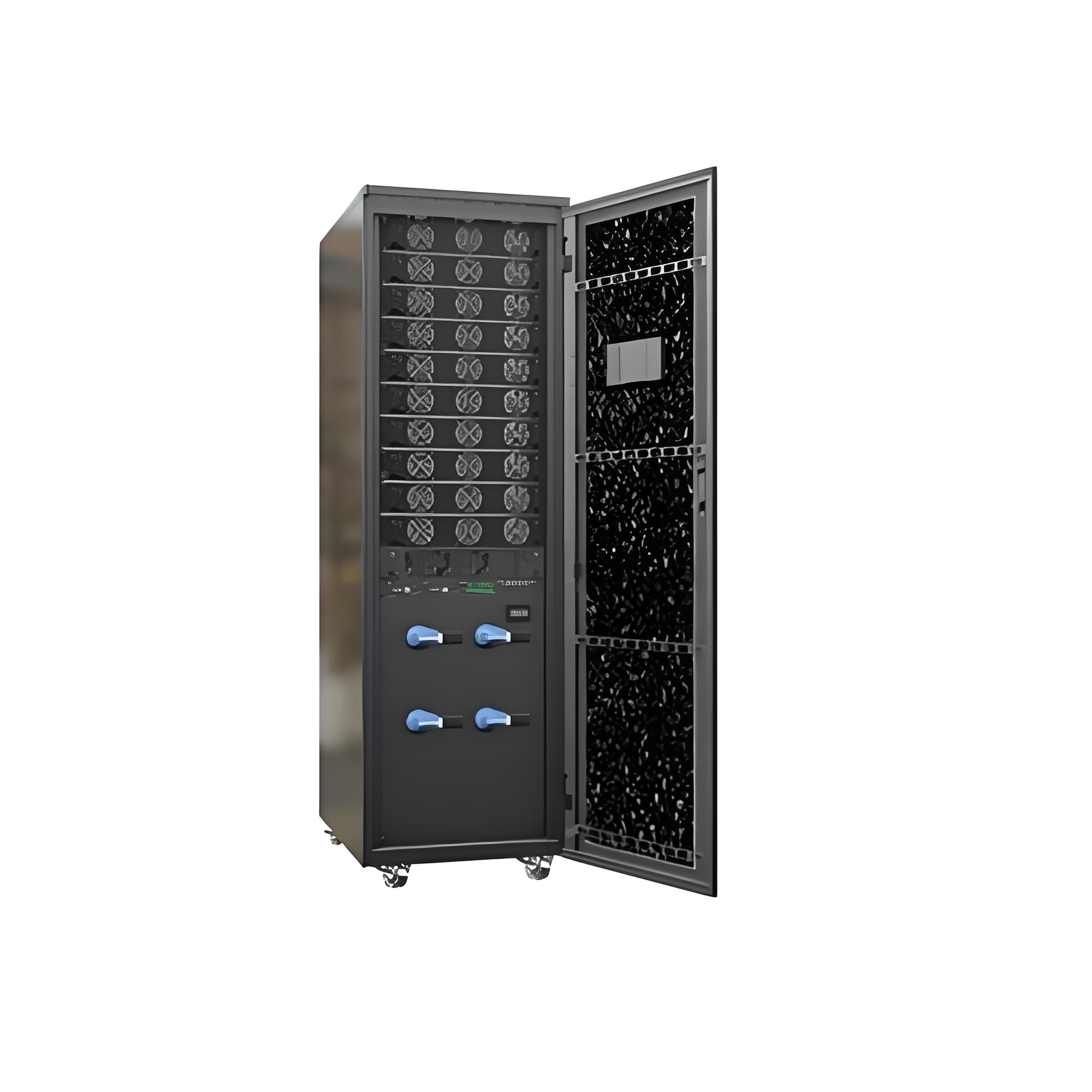

300KVA three-phase modular UPS
Performance characteristics:
* expansion and modular design, easy output
*power factor PF =1 KW (KVA)
* N + 1 rn 10 + R parallel redundant application design increased system flexibility, stability and safety
* modularization design application in the power supply module, the STS module and battery module is easy to maintenance, Can reduce after-sales maintenance cost
* charging current is adjustable, each module maximum charging current can be up to 8 a / 6 a
* 5.7 inch LCD graphical design, show more intuitive clear
* optional 10-inch touch LCD screen
| Parameter description of the 300KVA modular UPS | |||||
| Camera | JHL/UPS3S-90KVA | JHL/UPS3S-120KVA | JHL/UPS3S-180KVA | JHL/UPS3S-300KVA | |
| Maximum module number | 3 | 4 | 6 | 10 | |
| Power module capacity | PM-30HV(30KVA/30KW) | ||||
| Power module size(W*D*H) | 440*650*132(3U) | ||||
| Power module weight | 35KG/PCS | ||||
| import | nominal voltage | 3*380/400/415VAC(3Ph+N) | |||
| voltage range | 305~478VAC@100%load;208~304VAC@50%load | ||||
| frequency domain | 40Hz~70Hz | ||||
| power factor | —100%load > 0.99, 50% load > 0.98 | ||||
| harmonic distortion(THDI) | <3% @100%load | ||||
| Battery | connection type | Positive and negative battery power supply | |||
| nominal voltage | 士192VDC~士240VDC(可调) | ||||
| Number of batteries/groups | 32/FLEXIBLE COUPLING UNIT(Can be set to 32-36-40 knots/group ) |
||||
| temperature compensation | support | ||||
| Maximum charging current (single module) | 8A | ||||
| output | nominal voltage | 3*380/400/415VAC(3Ph+N) | |||
| stabilized voltage precision | ≤士1%(balanced load),≤士2%(Unbalanced load)50Hz/60Hz | ||||
| nominal frequency | 50Hz/60Hz | ||||
| Frequency range (synchronization range) | 46Hz~54Hz or 56Hz~64HZ | ||||
| power factor | 1 | ||||
| peak factor | 3:1 | ||||
| overload capacity | <110%1h,111~125%10min,126%~150%1min,>150%200ms | ||||
| harmonic distortion(THDi) | <1.5%(linear load),<4%(nonlinear load) | ||||
| efficiency | ≧94.5% | ||||
| environmental index | noise | <65dB(100%load),Intelligent speed regulating fan | |||
| show | Large 5.7 inch screen | ||||
| communication | standard configurationRS232/USB,RS485,dry contact ;(SNMP Nic selection) |
||||
| service environment | 环境温度:0°C~40”C,环境湿度:0%~95% | ||||
| storage temperature:-25°C~75°C | |||||
| elevation(m):≤1000, 1% derating every 100 meters over 1000m | |||||
| entrench | IP20 | ||||
| physical parameter | Cabinet size(xdeepxhigh)mm | 514*1100*763 | 600*1100*1475 | 600*1100*1475 | 600*1100*2010 |
| Cabinet weight(Kg) | 190 | 345 | 478 | 645 | |
Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.
The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
