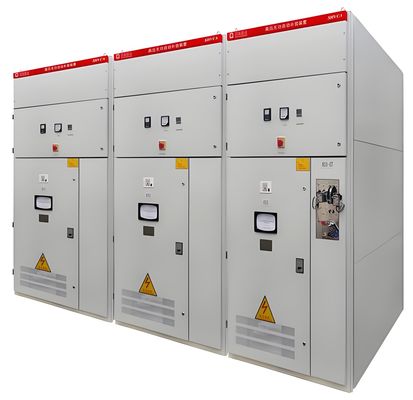

Oem 10KV 6KV Capacitor Banks Power Correction Power Distribution Equipment
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Customized |
| Certification | CE, ISO,CCC |
| Model Number | capacitor bank |
| Minimum Order Quantity | 1 unit |
| Price | Pending |
| Packaging Details | Wooden Case |
| Delivery Time | 30work days |
| Payment Terms | T/T,D/A |
| Supply Ability | 1000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | OEM | Offered |
|---|---|---|---|
| Color | Customized | Size | Customized |
| Rated Current | Customized | Color | Custom |
| Size | Custom | Feature | High Precision |
| Advantage | High Safety | Product Name | Power Distribution Equipment |
| Highlight | 10KV Capacitor banks,6KV Capacitor banks,Oem Power Distribution Equipment |
||
Product Description
Capacitor banks for Oem factory power correction devices
Key attributes
Other attributes
Place of Origin
chengdu China
Brand Name
JHL
Rated Frequency
50Hz, 60Hz
Rated Voltage
10KV 6KV
Product name
Oem Factory Power Correction Device Capacitor Bank Device
Application
Electric Power Transmission
Material
Cold rolled sheet, stainless steel, aluminum-zinc coated sheet
Color
Grey green white
Specification of APFC Panel:
- Rated Voltage: 380/ 400/ 415/ 440/ 690
- Rated Frequency: 50/ 60 Hz
- Rated Out Put: 20-5000 KVAr
- Configuration: Delta/ Star floating/ Star grounding
- Number of steps: 1-30.
- Step Distribution: Equal/ Binary/ Unequal
- Series Reactor: 5%, 5.5%, 5.67%, 6%,7%,8%,12.5%14%
- Reactor: Optional
- Switching device: Thyristor/ Capacitor duty contactor/compond switch
- Panel Type: Standard/ Modular/ Customized

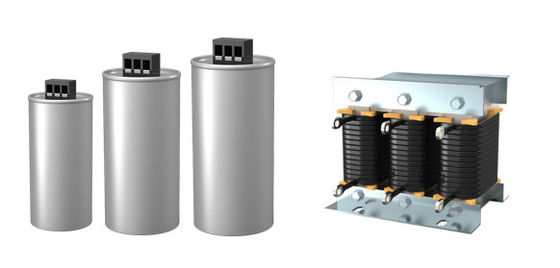

- Capacitors: Resin filled/ Gas filled/ APP
- Protections: OV/ UV/ SC/ EF/ OT
- Measuring CT: 1 or 3
1.Increase the load rate and improve the efficiency of the electrical equipment
2.Automatically switch fast response;
3.Accurate compensation;
4.With inner protection device reliable enough,high performance and low-cost operation.
5.Closed structure module design.
2.Automatically switch fast response;
3.Accurate compensation;
4.With inner protection device reliable enough,high performance and low-cost operation.
5.Closed structure module design.
6.Adopts dry self-healing capacitor, small volume, light enough, large capacity;
7.Intelligent operation: it can automatically analyze and calculate system voltage, current, active power, reactive power, power factor, operate in real time automatically.
7.Intelligent operation: it can automatically analyze and calculate system voltage, current, active power, reactive power, power factor, operate in real time automatically.
Implementation of standards
GB 50227-2008 "Code for design of shunt capacitor Devices"
JB/T7111-1993 "High voltage Shunt Capacitor Device"
DL/T 604-1996 "Technical conditions for ordering high voltage Shunt capacitor Units".
Use environmental conditions
Cabinet type indoor use, frame type outdoor use;
The altitude shall not exceed 1000m; (More than 1000m will be required)
Ambient air temperature -25 ~ 40°C; Indoor ventilation, good heat dissipation;
Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
The surrounding air is free from serious pollution such as corrosive gas and water vapor. No combustible gas, no fire, no explosion danger
Places without frequent severe vibration.
The network connected to the installation site or the bus voltage power supply side should have no large waveform distortion and no influence of higher harmonic sources, and the voltage waveform distortion rate and harmonic content should not exceed the provisions of GB/T14549-93 "Voltage Quality, Harmonics in public Power grid".
Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.
