Intelligent Wireless Automatic Gas Fire Extinguishing Device
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | JHL |
| Certification | CCC |
| Model Number | QRRG/S-XLF1/2/3/4 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | Color | Custom |
|---|---|---|---|
| Size | Custom | Feature | High Precision |
| Advantage | High Safety | Product Name | Control Cabinet Accessories |
| Highlight | Intelligent gas fire extinguishing system,wireless gas fire extinguishing system,automatic gas fire extinguishing system |
||
Product Description

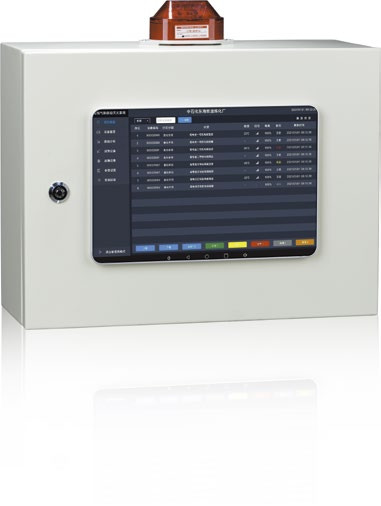

Intelligent wireless automatic gas fire extinguishing device
Power supply: AC220V
Display: 10 inch LCD touch screen
Monitoring points: Rs485 points :256, LORA, 4G points: unlimited alarm mode: audible and visual alarm, alarm sound ≥70dB
Storage records: ≥ 10,000
Wired communication mode: RS485
Wired communication distance: ≤500m
Wireless communication: LORA, 4G
Wireless communication distance: LORA≤200m, 4G distance unlimited
Monitoring number: 256
Ambient temperature: -20℃~60℃
Altitude: ≤4500 m
Product size: 350*400*130mm
Installation mode: Wall mounting

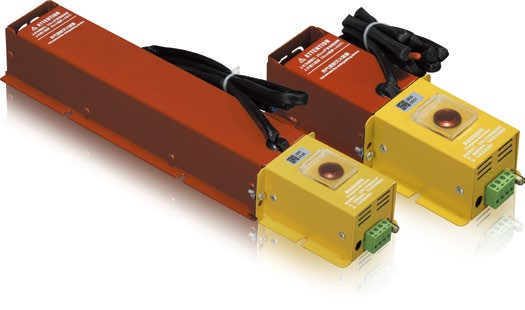

Communication mode: XLF1-/, XLF2-Rs485, XLF3-LORA/433MHz, XLF4-4G Trigger mode: XLF1- thermal line overtemperature, XLF2/3/4- thermal line overtemperature, smoke alarm, remote start, manual button Dimensions: Xlf1-0.1g /S:66×45×90mm, 0.3G/S:66×45×255mm XLF2/3/4-0.1G/S:66×45×170mm, 0.3G/S:66×45×335mm Working voltage: XLF1-/, XLF2/3/4-DC24V Dose: 0.1G/S:100g±2g, 0.3G/S:300g±2g Protection space: 0.1G/S:≤1m³, 0.3G/S:≤3m3³ Discharge time :≤ 14s discharge lag time :≤ 0.5s nozzle thermal distance: Temperature at 400mm nozzle ≤75℃ Shell surface temperature: ≤75℃ Fire extinguishing density: 100g/m³-130g/m³ Duration: 6 years Protection area requirements: protection area is relatively closed Installation method: screw fixed Working environment: -40-+85℃<95%RH
