True Online Double Conversion 10KVA/15KVA/20KVA/30KVA Three-Phase Output UPS Uninterrupted Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

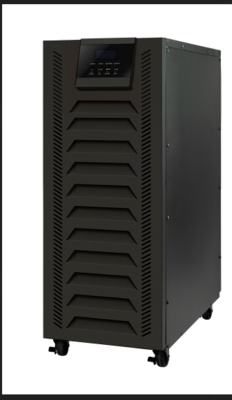

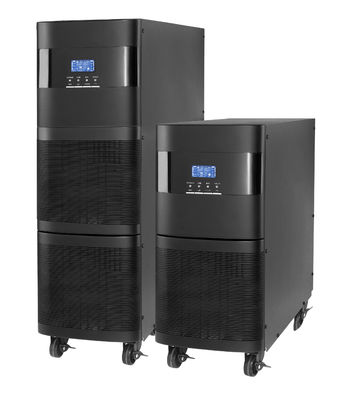

High-Frequency 10KVA/15KVA/20KVA/30KVA Three-Phase Output UPS
Overview:
The 10KVA/15KVA/20KVA/30KVA Three-Phase Output UPS from JinHuiLi Electric Co., Ltd. offers premium power protection for high-demand applications. Designed with advanced DSP technology and high-efficiency ECO mode, this UPS ensures your sensitive equipment remains protected from power disturbances and outages. Perfect for use in data centers, telecom equipment, and other critical operations requiring stable and reliable power.
Key Features:
-
True Online Double Conversion: Delivers reliable, uninterrupted power, ensuring protection for sensitive equipment.
-
Advanced DSP Technology: Provides high performance, precision, and reliability.
-
ECO Mode: Reduces energy consumption while maintaining protection during light load conditions.
-
Wide Input Voltage Range: Supports input voltage from 340VAC to 480VAC, adaptable to a variety of environments.
-
SNMP/USB/RS-232 Communication: Allows remote monitoring and control for added convenience.
Product Specifications:
| Model | JHL-10K (10KVA) | JHL-15K (15KVA) | JHL-20K (20KVA) | JHL-30K (30KVA) |
|---|---|---|---|---|
| Capacity | 10000 VA / 8000W | 15000 VA / 12000W | 20000 VA / 16000W | 30000 VA / 24000W |
| Input Voltage | 340V-480V ± 10% | 340V-480V ± 10% | 340V-480V ± 10% | 340V-480V ± 10% |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 220V ± 1% | 220V ± 1% | 220V ± 1% | 220V ± 1% |
| Output Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Efficiency | 90.5% | 91.8% | 91.8% | 92.1% |
| Total Harmonic Distortion (THD) | < 3% | < 3% | < 3% | < 3% |
| Battery | 12V 9AH | 12V 9AH | 12V 9AH | 12V 9AH |
| Charging Time | 9 hours | 9 hours | 9hours | 9 hours |
| Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
Advantages:
-
True Online Double Conversion: Offers continuous, reliable power through a true online design.
-
High Efficiency: With up to 91% operational efficiency, this UPS reduces energy waste and lowers operating costs.
-
ECO Mode: Helps save energy by switching to a more efficient mode during light load conditions.
-
Wide Input Voltage Range: Operates effectively in environments with varying voltage inputs, from 340V to 480V.
-
Remote Monitoring and Control: Equipped with SNMP, USB, and RS-232 interfaces for easy, centralized control and monitoring.
Applications:
-
Data Centers
-
Telecom Equipment
-
Medical Devices
-
Industrial Equipment
-
Server Rooms
Service & Warranty:
-
1-Year Manufacturer Warranty
-
24/7 Customer Support for troubleshooting and technical assistance.
-
