Product Description

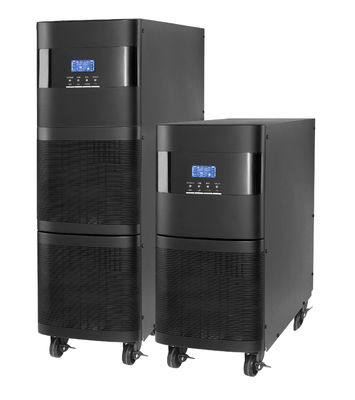

High-Frequency Three-Phase In/Three-Phase Out UPS System
Model: 10KVA/15KVA/20KVA/30KVA
This series of high-frequency three-phase in/three-phase out UPS systems utilizes advanced Digital Signal Processing (DSP) technology to provide powerful power protection. Whether for commercial environments, data centers, or other places with high power dependency, it ensures stable power supply for your equipment.
Product Features:
-
True Double Conversion Technology: Provides efficient and stable power output, protecting critical equipment from power failures.
-
DSP Core Technology: Ensures high efficiency and optimized performance.
-
50Hz/60Hz Adjustable Frequency: Adapts to various power requirements.
-
ECO Mode: Effectively saves energy and reduces operational costs.
-
High Efficiency Output: Achieves up to 91.9% efficiency, reducing power consumption.
-
Emergency Power Output (PO): Provides backup power during power outages.
-
Advanced Battery Optimization Design: Extends battery life, reducing the need for frequent replacements.
-
N+X Redundancy Design: Scalable redundancy for reliable power supply.
Technical Specifications:
| Model | JHL 10K-10K | JHL 15K-15K | JHL 20K-20K | JHL 30K-30K |
|---|---|---|---|---|
| Rated Power | 10KVA / 8000W | 15KVA / 12000W | 20KVA / 16000W | 30KVA / 24000W |
| Input Voltage | 380V (3-phase 4-wire) | 380V (3-phase 4-wire) | 380V (3-phase 4-wire) | 380V (3-phase 4-wire) |
| Input Frequency | 46Hz-54Hz / 56Hz-64Hz | 46Hz-54Hz / 56Hz-64Hz | 46Hz-54Hz / 56Hz-64Hz | 46Hz-54Hz / 56Hz-64Hz |
| Output Voltage | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V |
| Output Frequency | 50Hz ± 0.1Hz / 60Hz ± 0.1Hz | 50Hz ± 0.1Hz / 60Hz ± 0.1Hz | 50Hz ± 0.1Hz / 60Hz ± 0.1Hz | 50Hz ± 0.1Hz / 60Hz ± 0.1Hz |
| Battery Voltage | 12V x 9Ah | 12V x 9Ah | 12V x 9Ah | 12V x 9Ah |
| Efficiency | 90.5% | 91.9% | 91.9% | 92.1% |
| THD | ≤5% | ≤5% | ≤5% | ≤5% |
Applications:
-
Data Centers: Provides stable power support to prevent system instability caused by power fluctuations.
-
Factories and Manufacturing Equipment: Ensures uninterrupted power for critical production equipment, guaranteeing continuous operations.
-
Medical Equipment: Protects medical devices from power fluctuations or interruptions, ensuring safety in medical procedures.
-
Commercial Environments: Suitable for office buildings, shopping malls, and other places that require highly stable power supply.
Usage and Installation:
-
Designed with a standard 19-inch rack format for easy installation in data centers or server rooms.
-
Equipped with an intelligent SNMP monitoring system for remote management of the UPS’s operational status.
Technical Support and Services:
-
Nationwide after-sales service to ensure system operation.
-
Battery optimization design to extend battery life and reduce operating costs.
-
System upgrade and expansion services to meet the increasing power needs of customers.
