3-Phase 400V Modular UPS The Ultimate Power Solution for Data Centers and Industrial Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3-Phase 400V Modular UPS
Our 3-phase 400V Modular UPS system provides efficient and reliable power protection for critical applications. With its modular design, it offers flexible scalability to meet the needs of data centers, industrial equipment, and other vital operations requiring uninterrupted power.
Key Features:
-

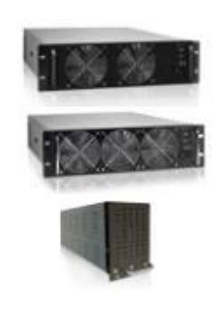

Modular Design: Allows for scalable expansion by adding UPS modules as needed.
-
High Efficiency: Delivers PF=1 output for maximum efficiency.
-
LCD Display: Real-time system status monitoring for easy operation and maintenance.
-
Versatile Application: Multiple models available to suit various load requirements.

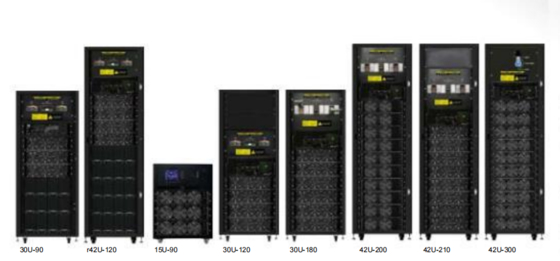

Product Models
| Model | 15U-90 | 15U-120 | 30U-90 | 30U-120 | 42U-120 | 42U-200 | 60U-120 | 60U-200 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) | 3x380V AC ±10% (3-phase) |
| Output Voltage |
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
3 x 380VAC/400VAC/415VAC
|
| Battery Voltage | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells | 12V x 36 cells |
| Efficiency | 98% | 98% | 98% | 98% | 98% | 98% | 98% | 98% |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Bypass Function | 100% bypass | 100% bypass | 100% bypass | 100% bypass | 100% bypass | 100% bypass | 100% bypass | 100% bypass |
| Display Type | LCD display | LCD display | LCD display | LCD display | LCD display | LCD display | LCD display | LCD display |
| Dimensions | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm | 1100 x 600 x 1475mm |
| Weight | 360kg | 380kg | 480kg | 500kg | 520kg | 540kg | 560kg | 580kg |
Operating Temperature:
-
Operating Range: 0–40°C
-
Storage Range: -30°C to 70°C
Communication and Control:
-
RS-232/USB Interfaces: Communication supported via RS-232 and USB ports.
-
SNMP Protocol: Remote monitoring and management via SNMP.
Supported Operating Systems:
-
Windows Support: Windows 2000/2003/XP/Server 2008, Windows 7
-
Linux & Mac OS Support: Compatible with Linux and Mac OS.
Other Features:
-
Wide Input Voltage Range: Supports input voltage from 300V AC to 478V AC to accommodate various power environments.
-
Hot-Swappable Modules: Hot-swapping capability ensures system uptime during maintenance.
-
Optimized Battery Management: Extends battery life with intelligent charging technology.
