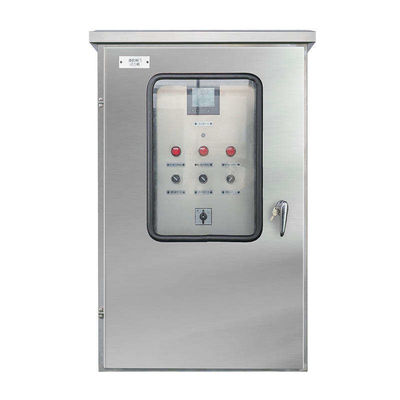

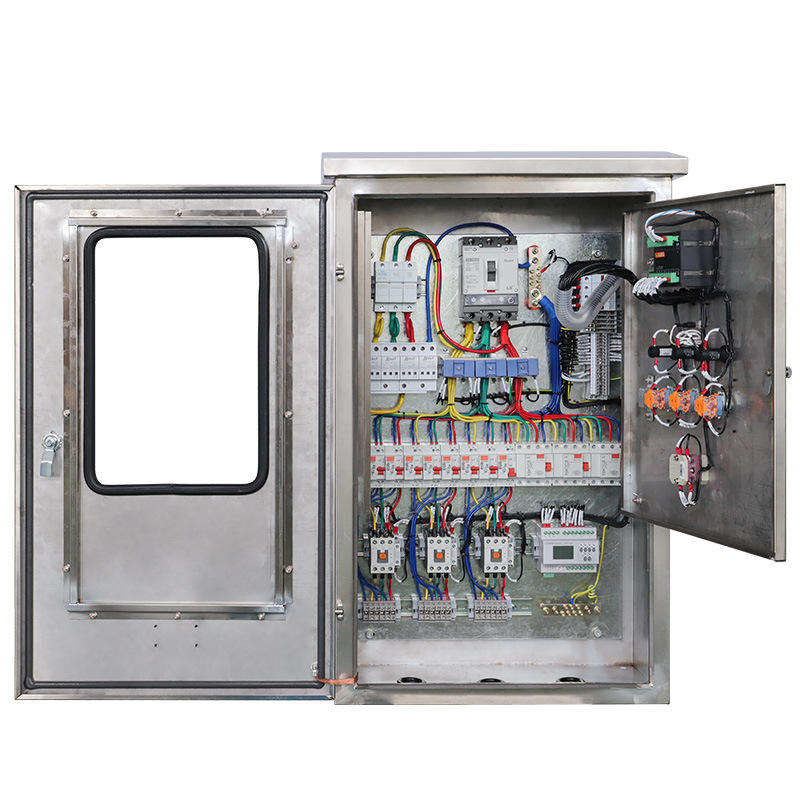

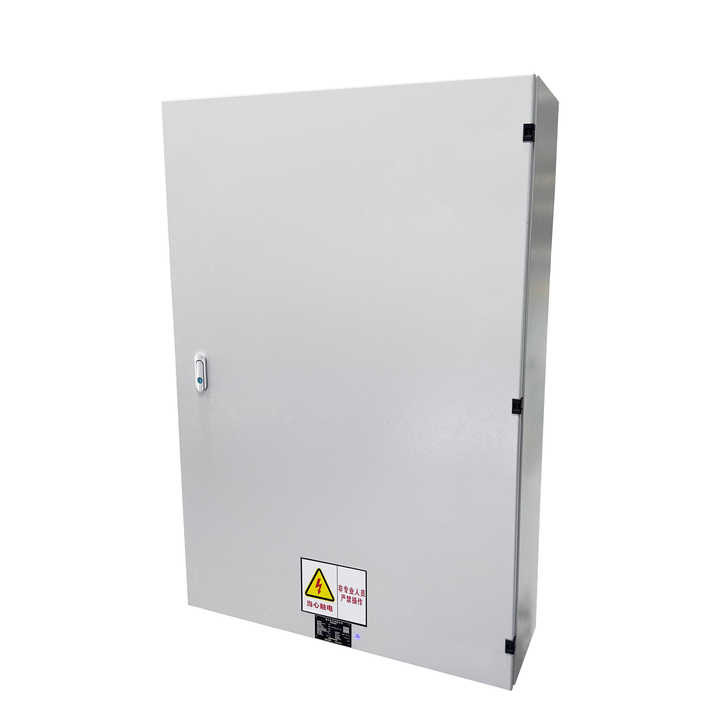

Customized Size Enclosures Distribution Box Wall Mounted Control Panel Switchgear Cabinet
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Customized |
| Certification | CCC, ISO |
| Minimum Order Quantity | 1 unit |
| Price | Pending |
| Packaging Details | Wooden Case |
| Delivery Time | 35 work days |
| Payment Terms | T/T,D/A |
| Supply Ability | 5000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | Operation Voltage | Low Voltage |
|---|---|---|---|
| Size | Customized | Shell Material | Customized |
| Color | Custom | Size | Custom |
| Feature | High Precision | Advantage | High Safety |
| Product Name | Power Distribution Equipment | ||
| Highlight | Customized Size Enclosures Distribution Box,Enclosures Distribution Box Wall Mounted,660V Switchgear Cabinet |
||
Product Description
Es Wall Mounted Enclosures Distribution Box Control Panel Switchgear Cabinet
Product Advantages
1.Compact structure: it can accommodate more functional units in a small space, and a single cabinet can accommodate up to 36 drawer circuits, saving the area of comrades in arms.
2.Flexible assembly: the C-shaped profile with 25mm module can meet various structural forms and can be combined and configured arbitrarily.
3.Standard module: it can form standard units such as protection, operation, conversion, control, adjustment, measurement and indication, and can be freely combined according to drawer type and fixed type as required.
4.Safe and reliable: the device to prevent the occurrence and spread of fault arc is carefully designed to ensure the safety of equipment and operators.
Product Description
| MLS Low Voltage Switchgear | |
| Rated voltage Ue | 380 (660)V |
| Rated insulation voltage | Ui 660 (1000)V |
| Rated impulse withstand voltage | Uimp 8kV |
| Rated frequency | 50 (60) Hz |
| Main bus rated current | In ≤6300A |
| Main bus short-time (1S) withstand current | Icw ≤100kA |
| Main bus peak withstand current | Ipk ≤220kA |
| Distribution bus (vertical bus) rated current | In 630, 800, 1000, 1250, 1600A |
| Distribution bus (vertical bus) short-time (1S) withstand current | Icw ≤50kA |
| Distribution bus (vertical bus) peak withstand current | Ipk ≤105kA |
| Protection level | IP40 |
| Height (H) 2200 mm (effective installation space for a single unit is 1800 mm) | |
| Width (W) 400, 600, 800, 1000, 1200 mm (cannot be used as an MCC cabinet when it is 400 mm) | |
| Depth (D) 600, 800, 1000, 1200 mm (cannot be used as an MCC cabinet when it is 600 mm) Module E=25 mm |
|
Company Profile

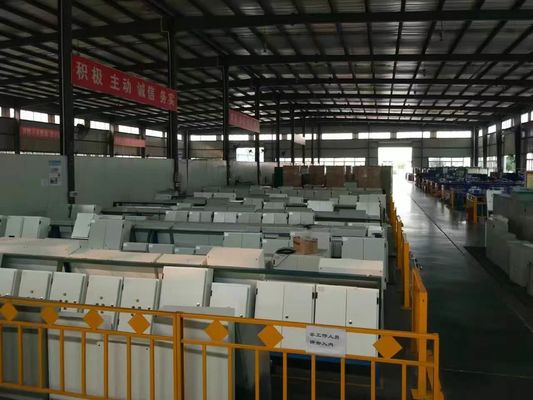

Sichuan Jinhuili Electric Co., LTD., is located in chenhdu City, is a professional manufacturer of intelligent distribution equipment and new energy device.The specific products include: wind and solar energy storage and charging router series, communication intelligent integrated power module series, data center intelligent modular overall solution and other related supporting products. It integrates research and development, production, marketing, and service.
products cover different categories such as high and low voltage switchgear, electrical components, intelligent busbars, integrated solar system storage and charging equipment, intelligent modular data centers, and new energy series products. Our customers cover different industries such as communication, power, industry, transportation, construction, and petrochemicals.
We are used to working with the most reknowned brands and we are able to recommend the ones that best fit your application and your budget. let us assist you in designing the most cost efficient control panel for your application.
