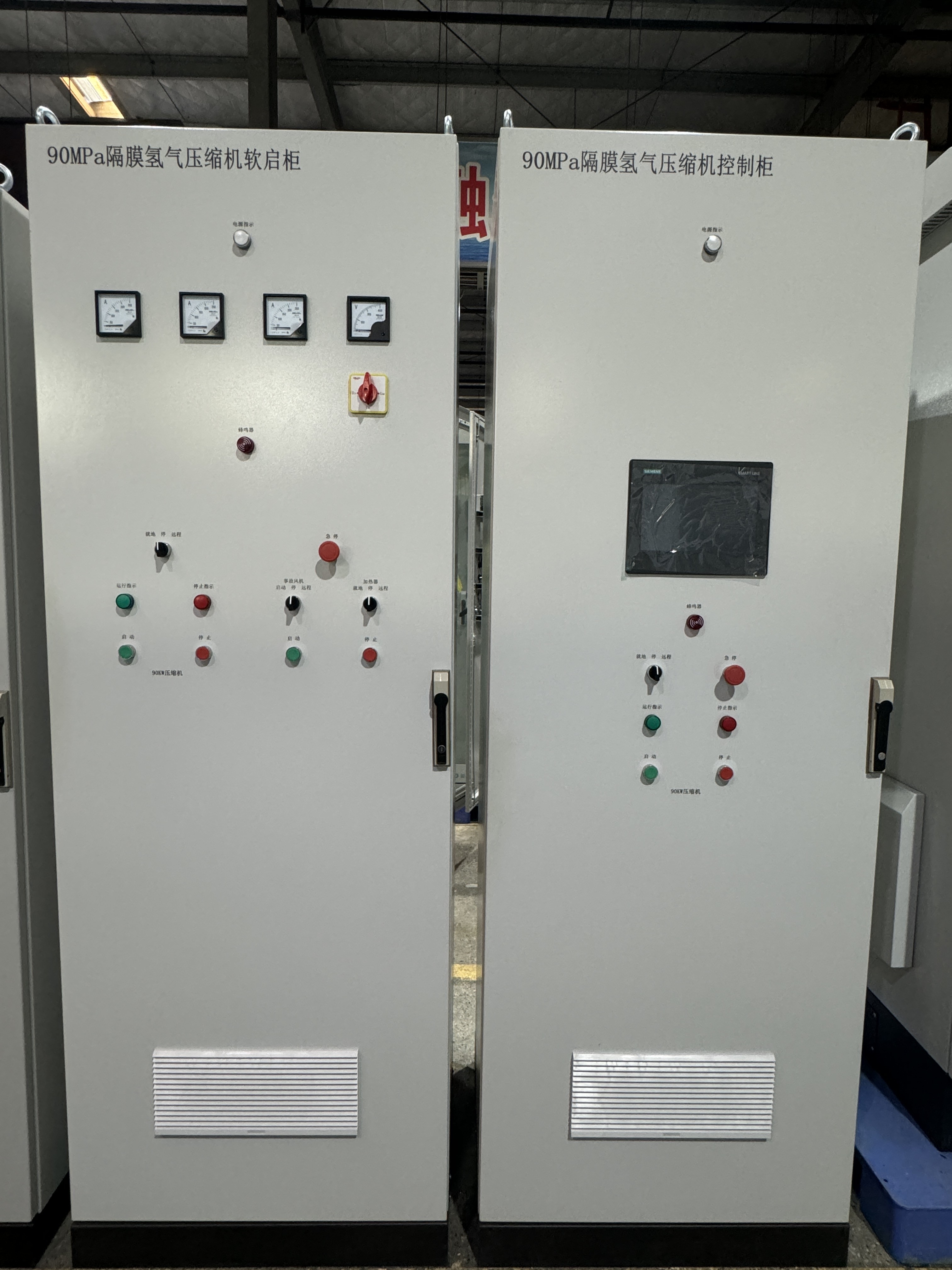

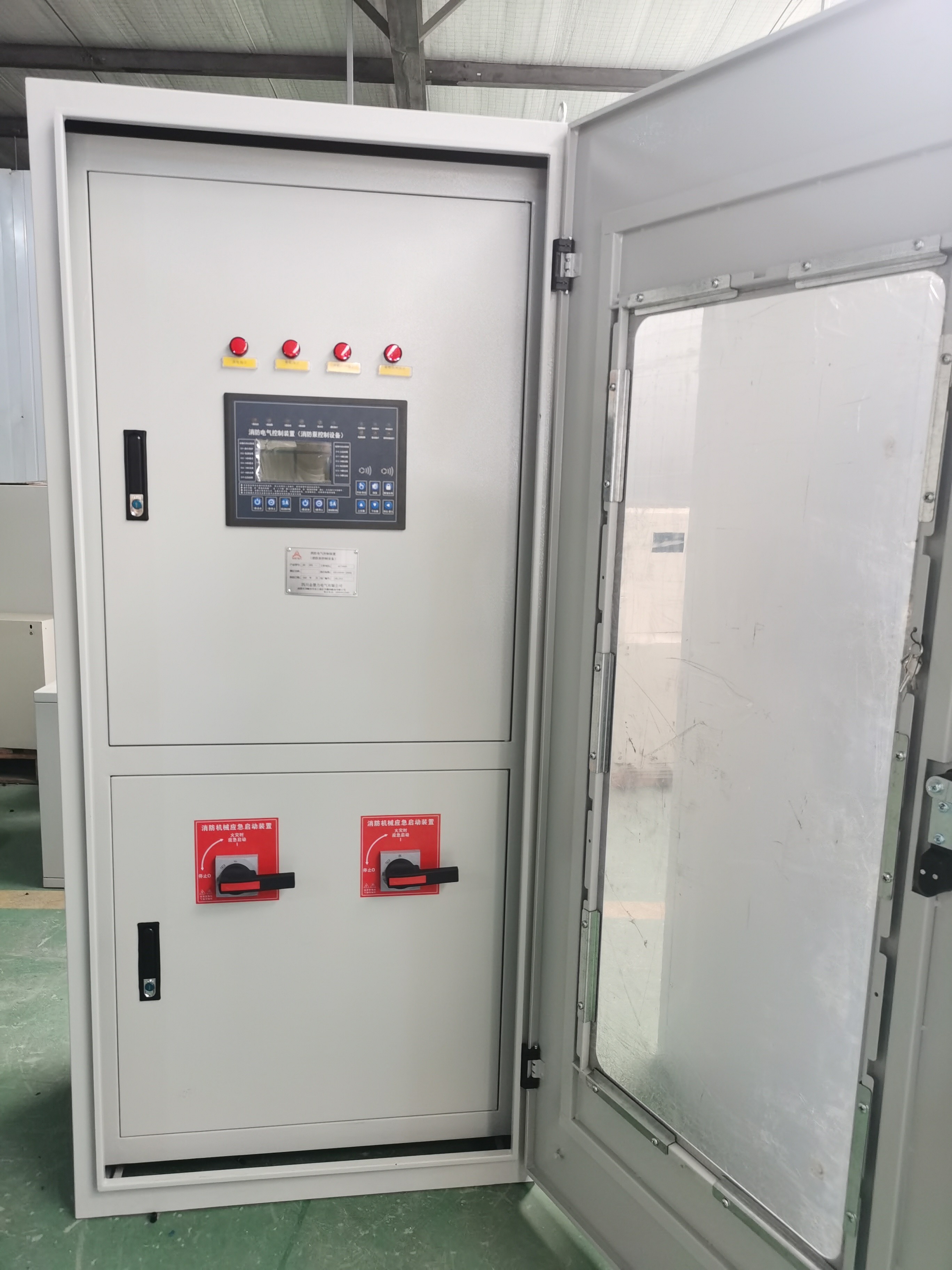

30kW To 160KW Soft Starter Cabinet 380V Automatic Control Panel
| Place of Origin | Chengdu, China |
|---|---|
| Brand Name | Customized |
| Certification | CCC, ISO |
| Model Number | 30KW-160KW |
| Minimum Order Quantity | 1 unit |
| Price | Pending |
| Packaging Details | Wooden Case |
| Delivery Time | 35 work days |
| Payment Terms | T/T,D/A |
| Supply Ability | 1000PCS/YEAR |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Long Service Life | Protection Class | IP30-IP65 |
|---|---|---|---|
| Standard | ISO / CE / CCC | Working Voltage | Customized |
| Materials | Stainless Steel 201/304/316, Cold Rolled Steel | Starting Frequency | It Can Be Started Frequently Or Infrequently And Can Be Set Internally |
| Surface Treatment | Customization | Color | Custom |
| Size | Custom | Feature | High Precision |
| Advantage | High Safety | Product Name | Automatic Control Panels |
| Highlight | 30kw automatic control panels,30kw electric control cabinet,160kw automatic control panels |
||
Product Description

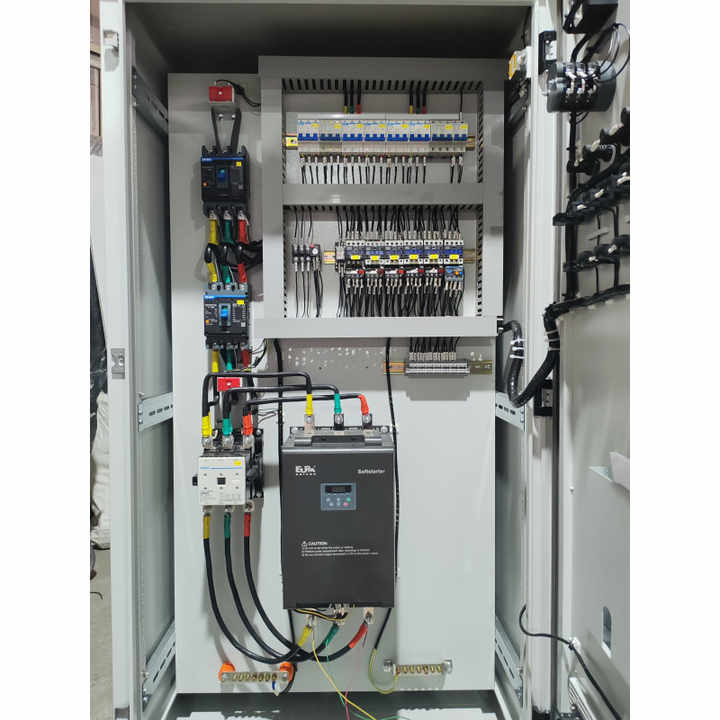

Soft Starter Cabinet: 380V 30kW-160KW Panel
Key attributes
Industry-specific attributes
rated voltage
110/220/380/400+V etc
Rated Current
10-3000A
Other attributes
Place of Origin
chengdu, China
Brand Name
JHL
Model Number
SP-CUS
Product Name
Electrical Distribution Box
Material
Stainless Steel 201/304/316,cold rolled steel
Rated Voltage
110/220V,380V,etc
Rated current
1-5000A
Surface treatment
Customization
Standard
CCC ISO
Frequency
50 HZ/60HZ
Usage
Construction Electrical Control Box
Phase
1 Phase / 3 Phase
Application
Intelligent electrical system
technical feature
● Grid side starting current: the starting current is 1 to 5 times the rated current is adjustable, the starting current is small and constant, the starting torque is large, no impact on the grid, reduce the primary equipment Design capacity input;
● Smooth starting: reduce the impact of large motor starting on mechanical equipment, can extend the life of mechanical equipment and motor about 30%;
● Power grid voltage drop: less than 10% of rated voltage;
● Communication mode: RS485, Modbus communication protocol;
● Starting time: 1 ~ 120S adjustable;
● Control mode: voltage exponential curve, voltage linear curve, current exponential curve, current linear curve,Programmable jump torque can be applied in each mode
And starting current limit. According to different loads, the corresponding starting curve can be selected to achieve the ideal starting effect.
Multiple parking methods, programmable soft parking, freedom
Stop, brake, pump stop. The unique basic algorithm makes the motor start and stop more accurate and smooth;
● External panel: the panel can be led to the equipment operating surface remotely through the fuselage interface, which is convenient for field use;
● Power frequency adaptive: power frequency 50/60Hz adaptive function, easy to use;
● Dynamic fault memory: up to 10 failures can be recorded. Easy to find the cause of the failure;
● Perfect protection function: full detection of current and load parameters, with overcurrent, overload, underload, overheating, phase break, short circuit, three-phase current imbalance, phase sequence detection
Measurement, frequency error and other microcomputer protection functions
Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.
The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
