Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller

  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
  • Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller
Place of Origin Chengdu, China
Brand Name Customized
Certification CCCF, ISO
Model Number 0.55-75KW
Minimum Order Quantity 1 unit
Price Pending
Packaging Details Wooden Case
Delivery Time 35 work days
Payment Terms T/T,D/A
Supply Ability 1000PCS/YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Long Service Life One-key Reset Of Faults One-key Reset Of Faults
Standard ISO / CE / CCC Working Voltage Customized
Signal Feedback Hand Automatic Feedback Power Failure Resume Option Non-volatile Memory
Surface Treatment Customization Color Custom
Size Custom Feature High Precision
Advantage High Safety Product Name Power Distribution Equipment
Highlight

automatic Fire pump control

,

Motor controller 0.55KW

,

75KW Intelligent pump controller
Leave a Message
Product Description

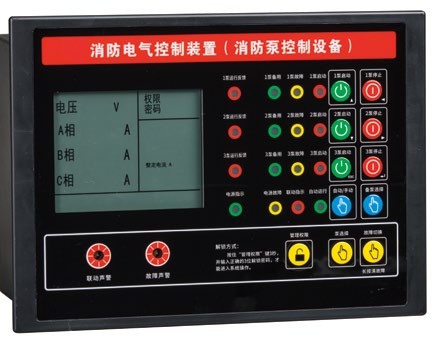

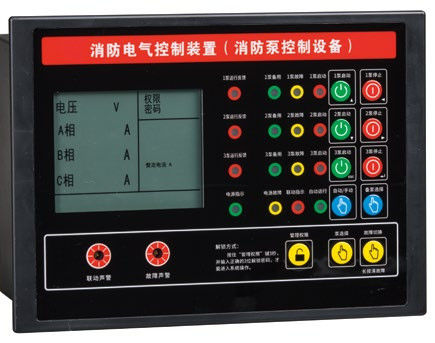

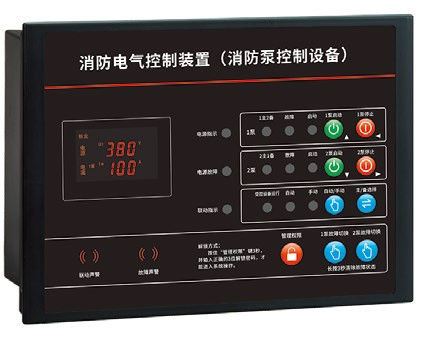

Fire pump control Motor controller Intelligent pump controller





Key attributes



Power supply: AC220V 50/60Hz


Rated power: 0.75 ~ 500kW

Rated current: 0.1 ~ 999A

Control mode: direct starting, star triangle starting, soft starting, autobuck starting

Display mode: LED digital tube, indicator light, Chinese characters

Display accuracy: 0.1/1A

Working mode: one use one standby

Protection function: power supply overvoltage, undervoltage, phase break, wrong phase, motor phase break, blocked rotation, overload, underload three-phase imbalance,

Circuit breaker failure, contactor failure, fire pool water shortage

Fault indication: Chinese display, sound and light alarm

Load type: water pump

Contact capacity: 250VAC 5A/10A (resistance)

Size: 290×210×56mm

Opening size: 272×192mm

Installation mode: panel type

Operating temperature: -10℃ ~ 45℃


Ambient humidity: 10 ~ 90%RH (non-condensing)



product feature



◇ Built-in switching power supply


◇ Built-in circuit breaker closing detection

◇ Built-in phase sequence protector

◇ Phase sequence detection positive sequence, reverse sequence, off optional

◇ Current sampling 0.1A~999A

◇ Increase frequency, three-phase voltage, current cycle display

◇ Programmable input and output terminals

◇ Increase overload alarm without stopping function

◇ 485 Communication function

◇ Standby pump failure stop

◇ Strong start linkage alarm can be set

◇ Water shortage protection stop

◇ Lower pressure audible alarm can be set




AI为你提供母语级高精翻译



Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller 0Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller 1Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller 2Automatic Fire Pump Control Motor Controller 0.55KW - 75KW Intelligent Pump Controller 3









Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.

The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
